제품 소개엘리베이터 예비 품목

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

인증
중국 SHANGHAI SUNNY ELEVATOR CO.,LTD 인증
중국 SHANGHAI SUNNY ELEVATOR CO.,LTD 인증
신년의 등장과 함께, 나는 회사가 그것의 규모를 확대하고, 사업을 확장하고, 사업을 확장하고 그것의 재원을 확대할 것이기를 바랍니다.

—— 멜야

품질의 장기 효과적인 메카니즘을 구축한 제품 품질 관리를 주장하기. 당신과 협력하는 것은 즐거움입니다.

—— 유일리

제가 지금 온라인 채팅 해요

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

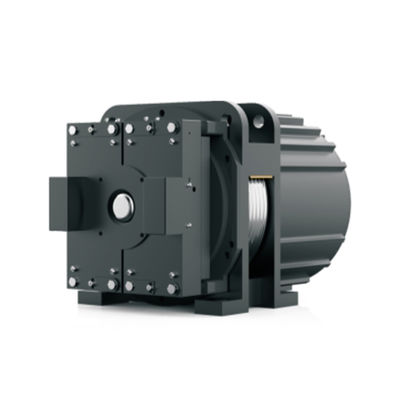

큰 이미지 :  1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

제품 상세 정보:
원래 장소: 중국
브랜드 이름: SUNNY
인증: CE
모델 번호: SN-GETM2.5DS
결제 및 배송 조건:
최소 주문 수량: 1
가격: $500~1200
포장 세부 사항: 나무 상자
배달 시간: 7 ~ 15 일
지불 조건: 웨스턴 유니온, 전신환, L/C (신용장), 페이팔
공급 능력: 0 달
상세 제품 설명
정적 부하: 3000kg INS.클래스: 155(F)
브레이크 볼륨: DC110V 빈도: 50 Hz
로핑: 2 : 1 제품 이름: 엘리베이터 기어리스 모터
모델: 엘리베이터 기어리스 모터 유형: 엘리베이터 기어리스 모터
짐: 630kg 속도: 1.0~1.75m/s
강조하다:

gearless elevator motor

,

1.0~1.75m/s elevator motor

,

elevator spare parts motor

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Product Parameters



Roping

Load

(kg)



Speed

(m/s)



Rated speed(r/min) Rated Torque(N.m) Motor Sheave Brake

Power

(kw)

Voltage(V) Current(A) Poles

Frequency

(Hz)

Diameter(mm) Rope(n) Groove pitch(mm) Current(A) Voltage(V)
2:1 630 1 119 329 4.1 340 10 20 19.8 320 ≤5x∅8 12 ≤2x1.5 DC 110V
1.5 179 337 6.3 15 29.8
1.75 209 337 7.4 17 34.8





1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 0

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 1

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 21.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 31.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 4
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
