제품 상세 정보:
결제 및 배송 조건:
|
| Name: | Two Panels Side Openning Cabin Door | Applicable: | Elevator Equipment |
|---|---|---|---|
| JJ: | 700-1300mm | Opening Way: | CENTER |
| Voltage: | AC220V | Transportation: | Sea Transportation |
| Keywords: | Two Panels Side Openning Cabin Door | Type: | Two Panels Side Openning Cabin Door |
| Model: | Two Panels Side Openning Cabin Door |

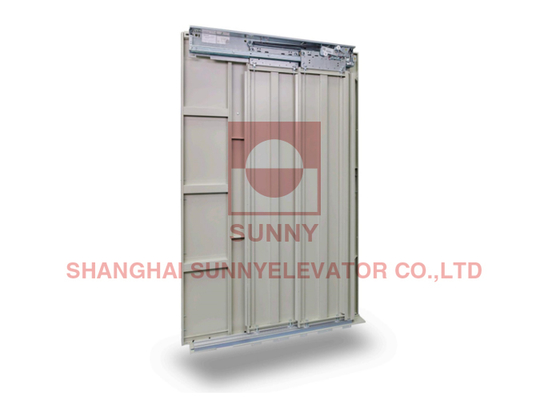

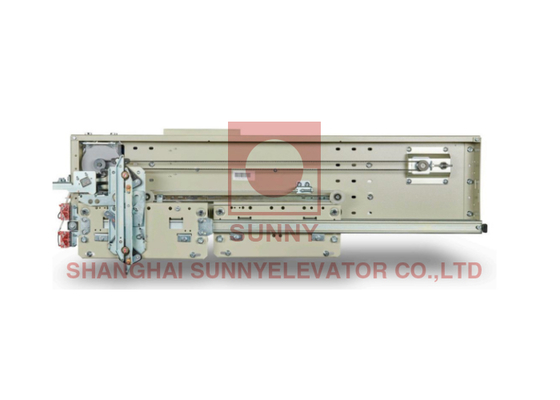

Elevator Two-Panel Side Opening Cabin Door With Compact Sliding Mechanism For Efficient Space Utilization
Our Two-Panel Side Opening Elevator Cabin Door is engineered for modern elevator systems where space optimization and smooth operation are critical. This innovative door design features dual panels that slide open sideways, making it ideal for compact elevator cabins while ensuring reliable performance and enhanced safety.
✔ Space-Saving Design – Perfect for tight spaces, reducing the required door opening area compared to traditional single-panel doors.
✔ Smooth & Quiet Operation – Precision-engineered sliding mechanism ensures noiseless and effortless door movement.
✔ Durable Construction – High-quality materials (stainless steel, aluminum, or tempered glass) for long-term reliability.
✔ Safety Compliance – Meets international elevator safety standards with obstacle detection and emergency release functions.
✔ Customizable Finishes – Available in various colors, materials, and panel designs to match elevator interiors.
| Parameter | Specification |
|---|---|
| Door Type | Two-panel side-opening (bi-parting) |
| Operation | Automatic/Sliding |
| Material Options | Stainless Steel / Aluminum / Tempered Glass |
| Panel Thickness | 1.5mm – 3mm (customizable) |
| Max. Opening Width | 800mm – 1200mm (adjustable) |
| Travel Speed | 0.3 – 0.5 m/s (adjustable) |
| Safety Features | Infrared sensors, emergency manual release |
| Power Supply | 110V/220V, 50-60Hz |
| Weight Capacity | Up to 150kg per panel |
| Certifications | EN 81-20/50, ASME A17.1, CE Certified |
Residential Elevators – Ideal for small home elevators with limited space.
Commercial Buildings – Efficient access in office and hotel elevators.
Marine & RV Use – Compact design perfect for boats and mobile homes.
Hospital & Accessibility – Smooth operation for wheelchair-friendly access.
✅ Optimized Space Efficiency – Reduces the door swing area, maximizing cabin space.
✅ Low Maintenance – Robust construction ensures minimal wear and tear.
✅ Customizable Options – Tailor the door’s size, material, and finish to fit your elevator design.
✅ Enhanced Safety – Built-in sensors prevent accidental closures.
Products Measurement
| OP | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 |
| L | 1150 | 1300 | 1450 | 1600 | 1750 | 1900 | 2050 |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
